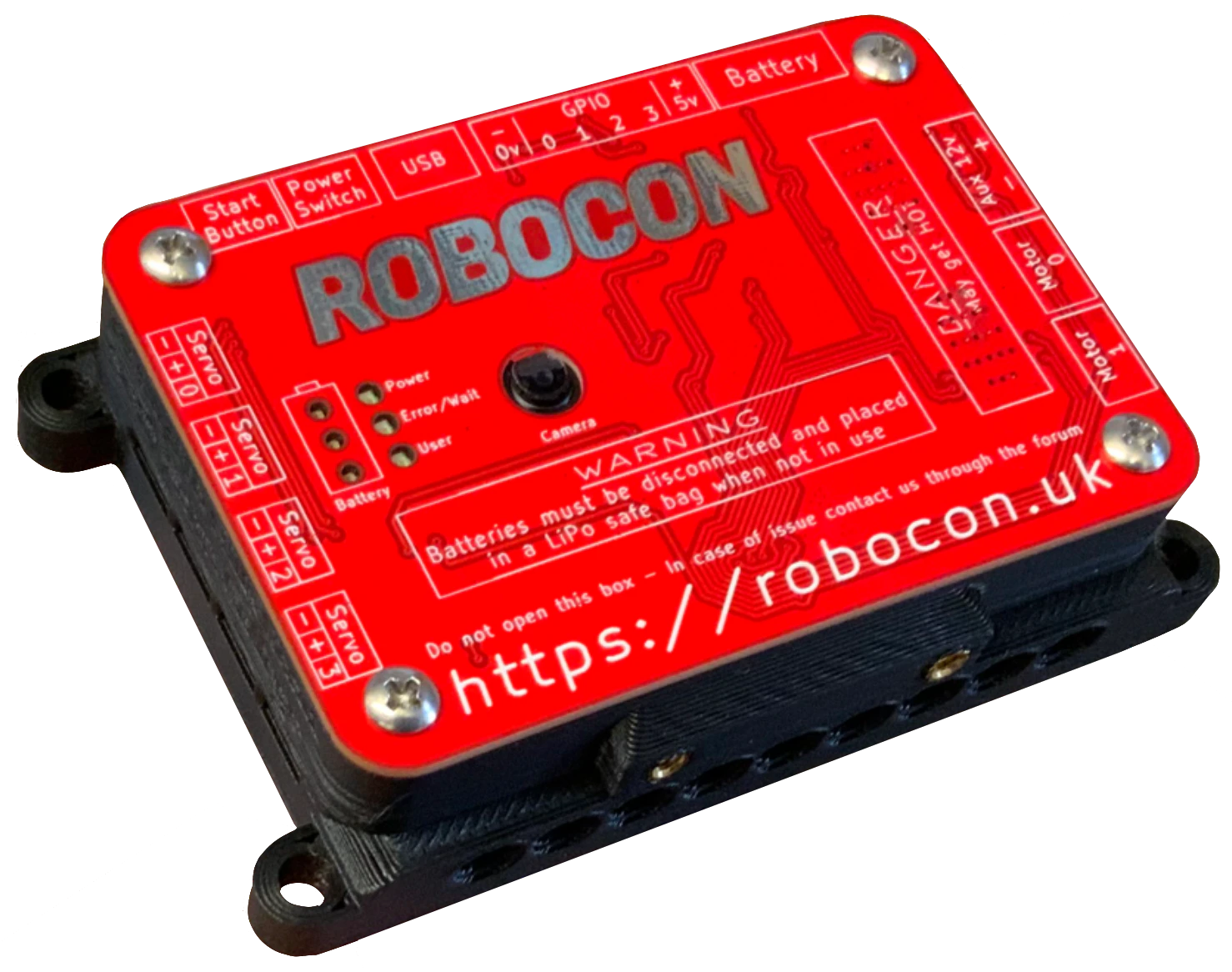

The BrainBox

The BrainBox is the central nervous system of your kit. It contains all the electronics and software needed to power your robot.

​

Getting Started

​

Powering On

1. Take a battery from the kit and plug it into the yellow socket labelled Battery.
2. Connect the red “power button” to the black connector along the side of the BrainBox.
3. Press the start button.
4. The battery status LEDs on the front will flash upwards, and the power LED will turn green.
5. When the User Light flashes blue, your BrainBox is ready to run code.

​

Powering Off

When you are finished:

1. Press the power button.
2. The user LED will flash rapidly.
3. Once the LED turns off, you may safely unplug the battery.

---

​

Power Distribution

The BrainBox distributes power from the battery to the rest of the robot, providing both 12V and 5V outputs.

• Regulations: All power must flow through the BrainBox.
• Safety: The internal fuse should never be replaced.
• Controls: Both the On/Off switch and the Start button plug directly into the BrainBox.

​

Motors & 12V Power

The BrainBox includes an integrated motor board with the following specifications:

---

​

Connectivity & GPIO

​

USB

The BrainBox features one USB port. If your project requires multiple USB devices (like a camera and a sensor), you will need to use an external USB hub.

​

GPIO Output

All GPIO pins are connected in-series with a 1K Ohm resistor for current limiting. This allows you to connect low-power devices like LEDs directly to the pins. While they nominally operate at 5V, the true output varies based on your load. You can calculate the voltage across your load using the following formula: $V_{load} = (5 * R_{load}) / (R_{load} + 1000)$

​

GPIO Input

We advise against using analogue inputs with an impedance greater than 9K Ohms. High impedance can result in inaccurate readings. If you must use a high-impedance source, use an Op-amp to buffer the input.

---

​

PWM (Pulse Width Modulation)

PWM is used to signal devices on how much “output” to provide—such as motor speed or servo position—by varying the width of electrical pulses.

​

PWM Signal Ranges

---

​

Pinout Diagrams

​

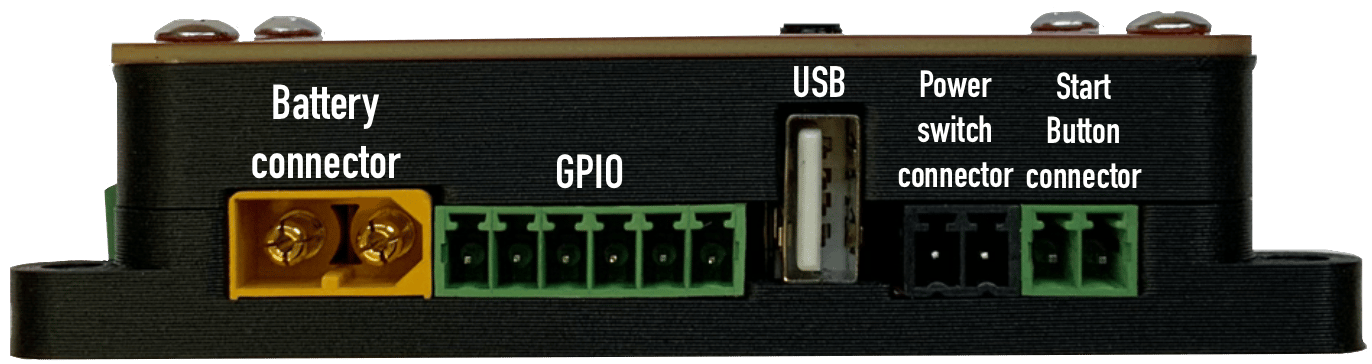

IO Layout

​

Motor Connections

​

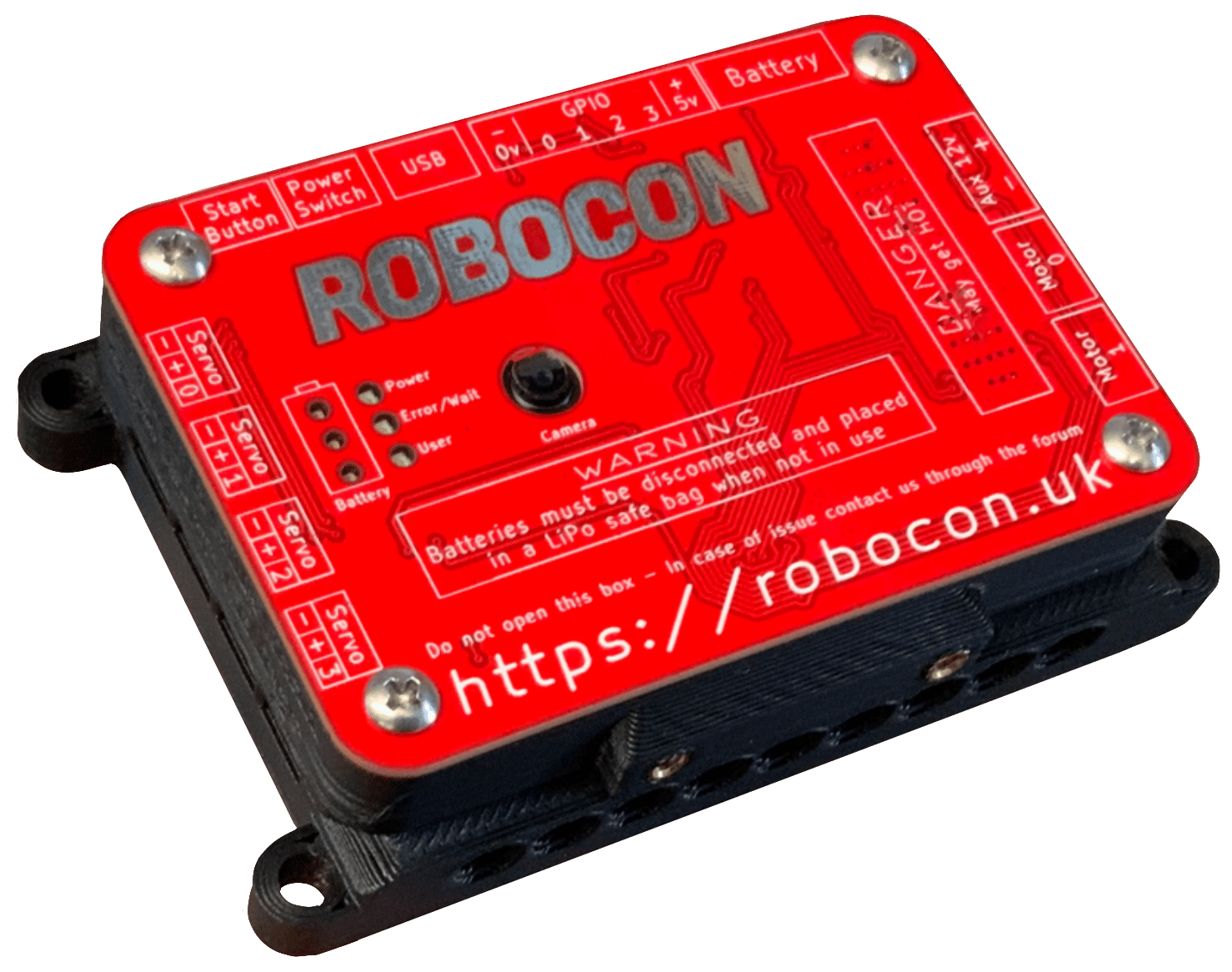

Front Panel
